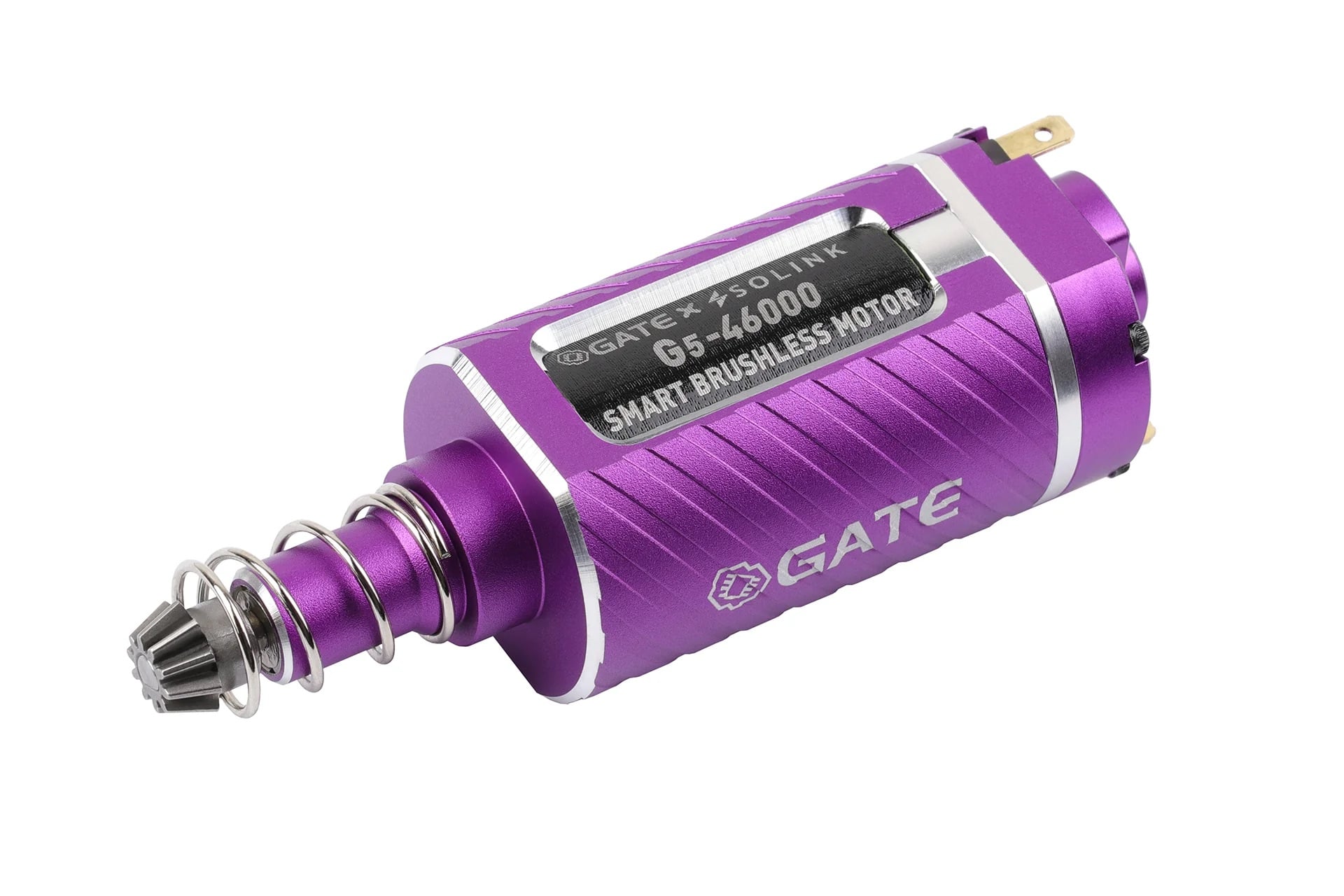

GATE G5 Plus Smart Brushless Motor - Long

Revolutionary G5 Smart Brushless Motor – the world’s first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®! Thanks to GCS app you get precise adjustment of speed ranging from 10k to 46k RPM.
Torque adjustment gives you the ability to adjust torque to your gearbox configuration. Soft Start extends the life of the gearbox’s internal parts, including the gears, meanwhile, Fast Start gives you the quickest possible trigger reaction.

You can change settings even during gameplay, without an additional programmer. What's also unique is that the motor has a built-in anti-reversal mechanism, significantly improving the gearbox's performance. Say goodbye to the problematic standard anti-reversal latches and enjoy quieter operation and even more accurate pre-cocking adjustments. The motor's extremely fast startup ensures an instantaneous trigger response, while its high efficiency reduces battery consumption and motor temperature. High torque enables compatibility with the most demanding replica configurations, and the adjustable rotational speed ensures perfect adaptation to almost any gearbox configuration.

What distinguishes G5 Brushless Motor from the competition?

• The world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®
• Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking
• Extremely high torque, reaching up to 2334 g-cm
• Very wide RPM range: 10 000 - 46 000 RPM
• Highly durable motor connectors
• Integrated motor shaft manufactured using CNC technology
• Exceptionally effective braking system
• D-type pinion gear

Specification of GATE G5 Brushless Motor for 11.1V

• AT NO LOAD:


  SPEED - 45 800 RPM
  CURRENT - 3.2A

• AT MAXIMUM EFFICIENCY:


  EFFICIENCY - 75.9%
  SPEED - 40 987 RPM
  TORQUE - 500 G/CM
  CURRENT - 24.9 A
  OUTPUT - 205 WATTS

• AT MAXIMUM OUTPUT:


  EFFICIENCY - 48.4%
  SPEED - 22 950 RPM
  TORQUE - 2334 G/CM
  CURRENT - 105 A
  OUTPUT - 519 WATTS

• Supply Voltage Range

  6 - 16.8 V

• Dimensions (Length x Width x Height)

  88.5 x 29.5 x 25 mm

• Finished Product Weight

  141 g



  GATE G5™ Brushless Motor and ASTER II Bluetooth® / TITAN II Bluetooth® gives you total control of your replica.

  • • The GCS app offers you the option to

    • Control your brushless motor speed and torque even during gameplay
    • Control your airsoft replica from a smartphone with Android, iOS and PC with Windows or macOS
    • Easily adjust the ASTER II Bluetooth® / TITAN II Bluetooth® settings during the game
    • Update ASTER and TITAN firmware – apply changes, make improvements, and get bugfixes
    • Perform diagnostics and send reports
    • View the BB counters, electrical measurements, and statistics
    • Get the latest news from GATE Enterprise
    • Acquire real-time data from your smartwatch (with Wear OS or watchOS)
    • Have no more surprises with an empty magazine or a discharged battery
    • get new motor settings in GCS and G5 Smart Brushless Motor is detected automatically
    • Read potential DTC errors in case of issues with motor
