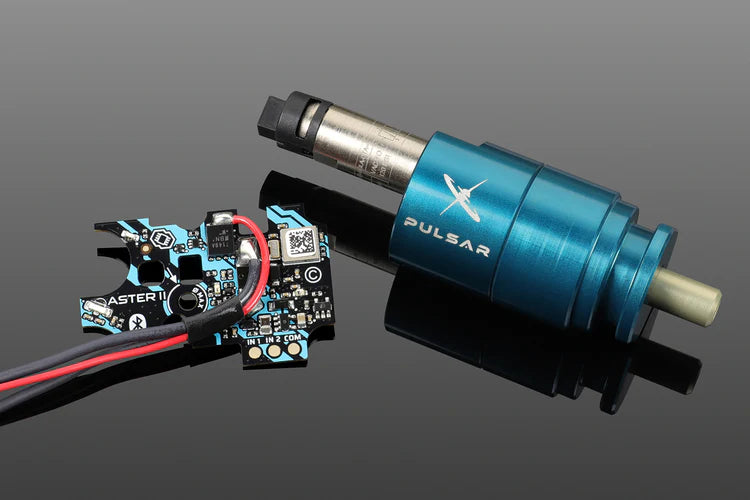

Gate PULSAR S HPA Engine with ASTER II Bluetooth® [Rear Wired]

• The best price-performance ratio - highest technologies at reasonable price
• ASTER II Bluetooth® - the latest GATE Bluetooth optical ETU for HPA replica
• Additionally stabilized nozzle ensures FPS consistency and eliminates Mid-cap syndrome
• Multifunctional port ready to connect accessories such as Bolt-catch button, magazine sensor, Hop-up chamber tracer, electric magazine power supply or a flashlight
• Simple maintenance thanks to a well-thought-of build

Caution! The purple nozzle of the HPA PULSAR S engine does not require the use of a stabilizing sleeve in the hop-up chamber. The use of a stabilizing sleeve with the purple nozzle may negatively affect engine performance.
The golden nozzle of the HPA PULSAR S engine may require additional stabilization. In this case, it is recommended to use a stabilizing sleeve in the hop-up chamber.

SPECIFICATIONS

PULSAR Single Solenoid

Solenoid Voltage Range

5-8.4 V

Operating Pressure

60-140 PSI – high pressure only

Gas Consumption

For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 1 PSI per shot

Dimensions (Length x Diameter)

88 mm x 25.4 mm

Finished Product Weight

75 g

Operating Temperature Range

min. -15° C, max. +50° C

Relative Humidity

≤ 80%

Adjustable ROF
1 to 100 RPS
Velocity
200 – 550 FPS

Operation mode
Open Bolt

Pressure range
60 to 140 PSI

Due to the nature of the design and operation of the engine, the compatibility range of the nozzle length is between 21.25 mm and 21.40 mm relative to that of the AEG nozzle

ASTER II Bluetooth®

Supply Voltage Range [AEG application]

3.75 - 12.9 V

Supply Voltage Range [HPA application]

5 - 8.6 V

Current Consumption

20 mA

Low Power Mode

130 µA

Dimensions (Length x Width x Height)

43.8 mm x 28.7 mm x 5.5 mm

Finished Product Weight

23.4 g

Operating Temperature Range

min. -15°C max. + 50°C

Relative Humidity

≤ 80%

PULSAR S with ASTER II Bluetooth® and GCS App gives you total control of your replica. ㅤ

ㅤ

The GCS offers you the option to:

• Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS

• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win

• No more surprises with an empty magazine or a discharged battery

• Easily adjust the ASTER settings during the game

• Update and upgrade firmware

• View the BB counters, electrical measurements, and statistics

• Perform diagnostics and send reports

• Get the latest news from GATE Enterprise
